60SV-48VDC

Home   Produits   >   Servomoteurs   >   Servomoteurs basse tension   >   60SV-48VDC
60SV40-48V-30EA1

60SV40-48V-30EA1

Code produit: 60SV40-48V-30EA1

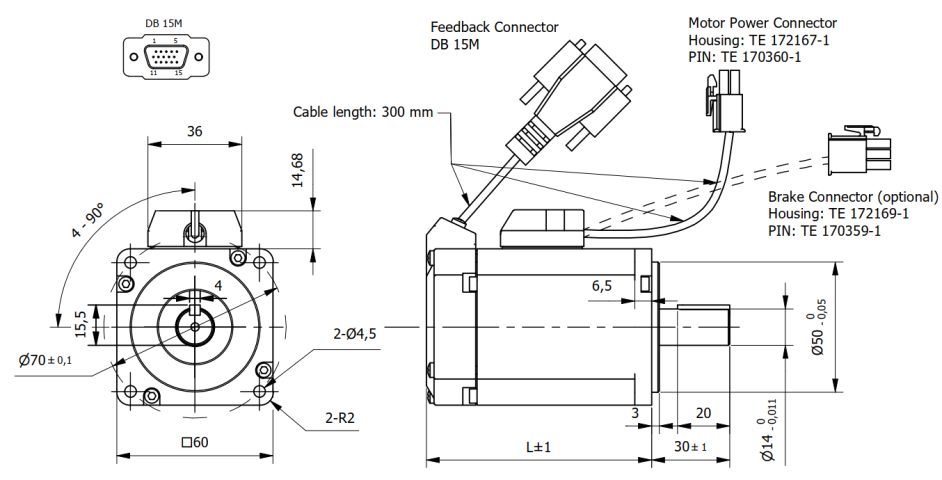

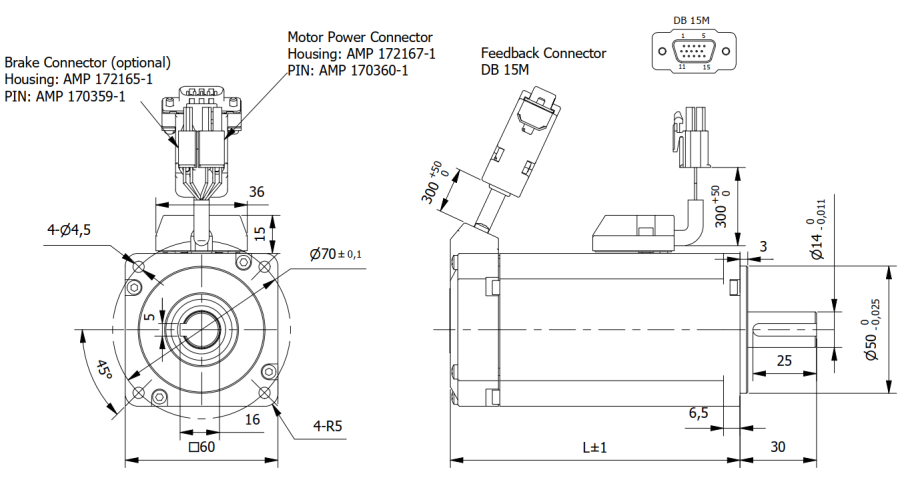

Données techniques Download Dimensions Combinaisons
Size60 mmLength (L)106 mm
Nominal Voltage48 VDC Rated Torque1.27 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power400 Watt
No-Load Speed5200±10% rpmMax. Peak Torque3.81 Nm
Torque Constant0.107 Nm/ARated Current12 A
Max. Peak Current36 ANo-Load Current<1 A
Back EMF constant6.5 V/kRPMLine to Line Resistance0.23±10% Ohm
Line to Line Inductance0.3±20% mHRotor Inertia0.25 Kgcm2
Weight1.35 KgProtection ClassIP65
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.14mm (max.4N) mmMax. Radial Force (20mm from flange)245 N
Max. Axial Force98 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardOptical incremental 2500CPR
Encoder Type - Optionalon demand
