60SV20-220V-30EA2

Code produit: 60SV20-220V-30EA2

Données techniques

Download

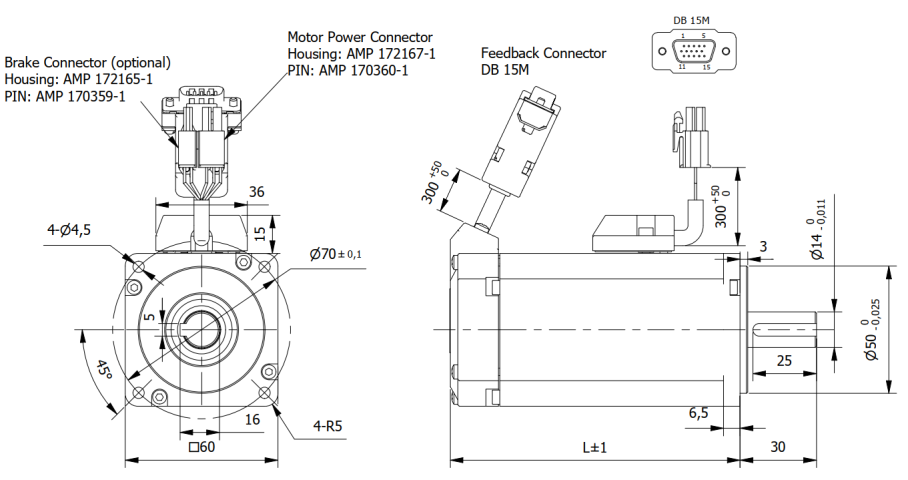

Dimensions

Combinaisons

Size	60 mm	Length (L)	116 mm
Nominal Voltage	220 VAC	Rated Torque	0.64 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	200 Watt
No-Load Speed	6400±10% rpm	Max. Peak Torque	1.92 Nm
Torque Constant	0.53 Nm/A	Rated Current	1 A
Max. Peak Current	3.6 A	No-Load Current	0.6 A
Back EMF constant	32 V/kRPM	Line to Line Resistance	9.35±10% Ohm
Line to Line Inductance	17±20% mH	Rotor Inertia	0.15 Kgcm²
Brake	24VDC - 1.5Nm	Weight	1.3 Kg
Protection Class	IP65	Insulation Class	F 155°C
Radial Play	0.02mm (max.4N)	Axial Play	0.14mm (max.4N) mm
Max. Radial Force (20mm from flange)	245 N	Max. Axial Force	98 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	on demand
