15PM12-0064A

Code produit: 15PM12-0064A.000

Données techniques

Download

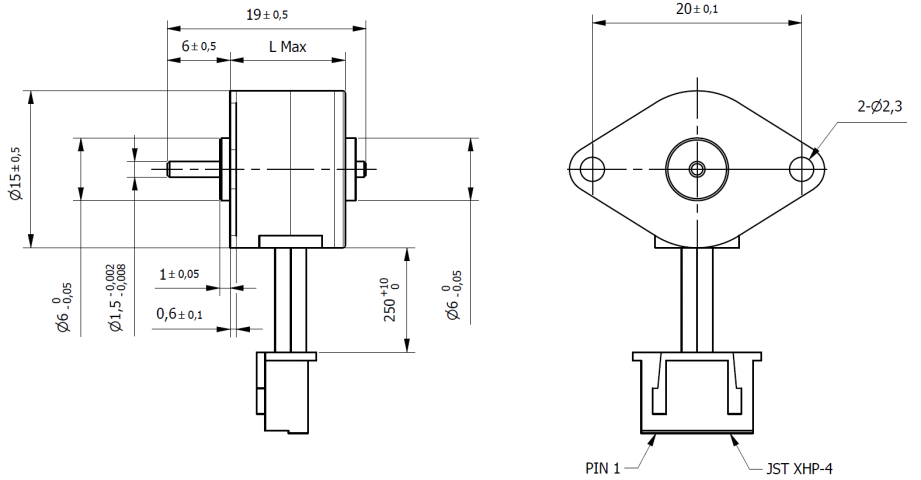

Dimensions

Combinaisons

Size	15 mm	Length (L)	22 mm
Current/Phase	0.065 A	Holding Torque	0.0032 Nm
Step Angle	18 °	Rated Voltage	12 Vdc
Resistance/Phase	190 Ohm	Inductance/Phase	37 mH
Rotor Inertia	1 gcm²	N° of Leads	4
Weight	0.012 Kg	Step Angle accuracy	±8 %
Insulation Class	B	Operating Temperature	-20°C + 50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Max. Radial Force (3mm from flange)	2 N
Max. Axial Force	1 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
